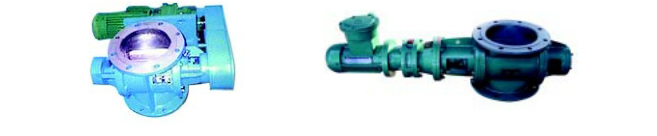

SLXF star discharge valve
Applications scope
SLXF star discharge valve can be used for continuous and uniform allocation, transferring and unloading of material in electricity, chemical engineering, metallurgical, building and foodstuff industries, such as transferring coal powder, cement, dust, cereal grain and chemical material.
Product features
--Driven by motor, the speed reducer drags the impeller run along the axis. Material in the upstream tank moves to the outlet through material channel promoted by the rotary impeller.
--The inlet and outlet is connected with round flange or square flange
--The entire equipment adopts two types, i.e., direct connection type or chain gear connection type, without specially making installation foundation, which reduces space and cost.
--According the material property, fire-proof motor or speed regulating motor can be applied.
Technical specifications
| Type |
SLXF100 |
SLXF150 |
SLXF200 |
SLXF250 |
|
Chain gear connection type |
Direct connection type |
Chain gear connection type |
Direct connection type |
Chain gear connection type |
Direct connection type |
Chain gear connection type |
Direct connection type |
| Production capacity m3/h |
0.5 |
1.0 |
0.8 |
1.6 |
2.6 |
5.2 |
6.6 |
13.3 |
| Rotary speed of chain gear rpm r/min |
16.3 |
32.3 |
16.3 |
32.2 |
16.4 |
32.5 |
16.4 |
32.5 |
| Impeller diameter mm |
Φ100 |
Φ150 |
Φ200 |
Φ250 |
| Speed reducer |
Power |
0.55-0.75KW |
1.1KW |
| Type |
BWY OR BLY |
| Type |
SLXF300 |
SLXF350 |
SLXF400 |
SLXF500 |
|
Chain gear connection type |
Direct connection type |
Chain gear connection type |
Direct connection type |
Chain gear connection type |
Direct connection type |
Chain gear connection type |
Direct connection type |
| Production capacity m3/h |
10.5 |
21 |
18.6 |
32.3 |
23.6 |
47.3 |
39.4 |
78.8 |
| Rotary speed of chain gear rpm r/min |
16.3 |
32.3 |
16.3 |
32.3 |
16.4 |
32.5 |
16.4 |
32.5 |
| Impeller diameter mm |
Φ300 |
Φ350 |
Φ400 |
Φ500 |
| Speed reducer |
Power |
1.1KW~2.2KW |
2.2KW~4KW |
| Type |
BWY OR BLY | Erection size
|
TYPE |
L |
H |
D |
D0 |
D1 |
n×d |
|
SLXF100 |
1019 |
250 |
180 |
110 |
220 |
8×18 |
|
SLXF150 |
1049 |
390 |
240 |
160 |
285 |
8×22 |
|
SLXF200 |
1151 |
350 |
295 |
220 |
340 |
8×22 |
|
SLXF250 |
1201 |
420 |
350 |
270 |
395 |
12×22 |
|
SLXF300 |
1270 |
500 |
400 |
320 |
445 |
12×22 |
|
SLXF350 |
1330 |
550 |
460 |
375 |
505 |
16×22 |
|
SLXF400 |
1442 |
630 |
515 |
425 |
565 |
16×22 |
|
SLXF500 |
1542 |
750 |
620 |
530 |
670 |
20×26 |
|
TYPE |
L |
L1 |
H |
D |
DO |
D1 |
n×d |
|
SLXF100 |
500 |
460 |
250 |
210 |
110 |
220 |
8×18 |
|
SLXF150 |
550 |
505 |
290 |
240 |
160 |
285 |
8×22 |
|
SLXF200 |
665 |
705 |
350 |
295 |
220 |
340 |
8×22 |
|
SLXF250 |
745 |
810 |
420 |
350 |
270 |
395 |
12×22 |
|
SLXF300 |
800 |
850 |
500 |
400 |
320 |
445 |
12×22 |
|
SLXF350 |
880 |
885 |
550 |
460 |
375 |
505 |
16×22 |
|
SLXF400 |
920 |
925 |
630 |
515 |
425 |
565 |
16×22 |
|
SLXF500 |
1020 |
1025 |
750 |
620 |
530 |
670 |
20×26 |
|
|
